INT Aquarium – A New NUVO Line overflowing with space
NUVO Aquariums have a long history of transforming the way you reef, and our next generation of Full-Size aquariums will change it again! From the start, Innovative Marine’s vision was to create an aquarium with an overflow system that flawlessly integrates with your dream set up.

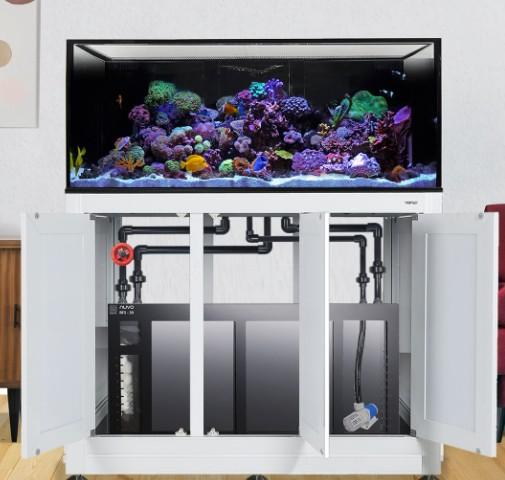

Introducing the NUVO INT. The INT’s internal overflow system possess an industry first Trapezoid Infinity Overflow, dual LOC-LINE return nozzles and a custom “Bean Animal” style safety drain system.
When crafting a premium aquarium, no detail is ever overlooked or underachieved. Utilizing only the highest caliber components, the INT embraces Innovative Marine’s award-winning craftsmanship. Ultra-thick high clarity low iron glass, laser cut acrylic weir and our signature black silicone are just some standard features expected from a bloodline of distinction.
Completely silent, efficient, and fully customizable the NUVO INT aquariums were forged for the next generation of products and hobbyists.
NUVO APS (Aluminum Profile Series) Stand
The NUVO APS stand sets new standard in aquarium furniture.
Aluminum has been a tried-and-true element for custom commercial stands, because of its versatility, strength, and the fact that it is very light weight. Innovative Marine just brought that technology to the aquarium industry to create a truly singular aesthetic aquarium stand that is modular in construction, easy to set up, and is resistant to corrosion and swelling in both fresh and marine environments.
Finally, an aquarium stand that may outlast your aquarium!
RFS Sump
The NUVO RFS (Reef Filtration Series) Acrylic Sump is a fully comprehensive, all-in-one saltwater reef aquarium sump. With almost every upgrade feature you could dream of in a sump with a few more special upgrades that will make you wonder how you lived without them.
Our entire RFS Sumps are what experienced reef pro hobbyist will want and everything a new a hobbyist will be thankful for later on in their aquarium experience.
Advanced pros will have the features the wished they had when they started. Beginning reefers will save time and money by skipping the expensive learning curve of a building an aquarium sump system.
Return Pump – Mighty Jet DC XL
The MightyJet XL submersible DC return pump is super quiet, has a run-dry protection with 7 different speeds, and a feed mode.
With a maximum flow rate of 2,656 gallons per hour, you are able to dial that flow to your preferred aquarium needs with the equipped controller at the touch of a button.
Complete Preassembled Plumbing Kit
No more guesswork, no multiple trips to the hardware store, and no wasting time repurchasing parts that were measured incorrectly. The complete and preassembled plumbing kit is made to fit exactly your Innovative Marine aquarium system. From PVC bulkheads, gate valves made for saltwater, and all your premeasured pipe lengths, this kit comes glued together and with only a few turns to tighten some bulkheads and unions you have just completed your entire Reef System. Getting it right… from the start.
Aquarium:
Approximately 100 Gallons
DIMS: 47.3″ x 23.6″ x 19.7″
Crated Package Weight: 350 lbs.
Trapezoid Infinity Coast to Coast Overflow
3 – 1″ Pre-drilled “Bean Animal” Internal Overflow [Primary Drain, Emergency Drain and Secondary E-Drain]
1 – 3/4″ Pre-drilled Return Hole
Laser Cut Black Acrylic Weir w/ Slot Cut Rear Glass Panel
Ultra-Thick 15mm High Clarity Low Iron Glass
Diamond Edged Flat Polished
Black Silicone
Pre-Assembled SafeScreen Mesh Screen Lid
Pre-Installed Rubber Leveling Mat
Included Plumbing: 1- 3/4″ NUVO Nozzle [Return] 1- Primary Drain Assembly [Overflow] 1 – E-Drain Assembly, 1 -Secondary E-Drain Assembly 1- Return Hose Assembly
Recommended Return Pump Flow Rate: 1000-2000 GPH
APS Stand:
Stand DIMS: Length 47.50” Width: 23.50” Height: 35.81”
Interior DIMS: Length 44.25” Width: 19.31” Height: 33.75”
Stand Package Weight: 87 lbs.
Anodized Aluminum
Corrosion Resistant
No Warping or Swelling
Integrated Hardware
Easy Set up (semi-assembled)
Includes hex torque wrench
Light Weight
Modular
Includes pre-cut Closed Cell PVC Foam boards
Top and Bottom Magnetic Door Latches
Side Access Doors
Spacious interior for sumps
100% recyclable aluminum
Color: Matte Black
RFS39 Sump:
57 Gallon Capacity
Dimensions: L 38.6″ x W 18.8″ x H 18.3″
Weight of Sump in Box: 72.8 lbs.
Weight of Sump: 67.3 lbs.
Reinforced Double Walled Acrylic Frame Construction
Silent Siphon Safety Drain Design
Laser Etched Water Level Indicators (Front and Side Views)
3 – 1” High Quality PVC Bulkheads
1 – 3/4” High Quality PVC Bulkhead with Hose Barb Fitting
Vertical Heater Compartment with Cord Management
Drain Silencing Plates with Filter Sponge
Acrylic Filter Media Cups – Includes High Performance Fiber Ball Media
Accommodates 4” Filter Socks
Adjustable Water Height Baffle in Protein Skimmer Chamber
Polycarbonate Noise Reducing Lid Covers
(With Protein Skimmer Cutout)
Refugium Chaetomax LED Light Bracket
*Light Sold Separately
1/4“ And 1/2” ATO Return Hose Barb
4 – Black RO/DI Push Fit Fittings
Cord Management Hooks with Cutout Slots
Black Adhesive Cord Holders
MightyJet XL – 2656 GPH DC Submersible Return Pump:
Ultra Quiet DC Technology
Run-Dry Protection
One Touch Feed Mode
Includes Controller
Seven Speed Settings
Min Flow Rate 1,062 GPH
Max Flow Rate 2,656 GPH
Dims 7″ x 4.09″ x 5.11″
Max Watts 85W/24v DC
NOT INTENDED FOR EXTERNAL USE
Complete Preassembled Plumbing Kit:
Premeasured
Glued
Connects aquarium drains and returns to sump
PVC bulkheads
Includes siphon drain gate valve specifically made to be used in Saltwater
Assembly requires tightening of bulkheads and unions.
